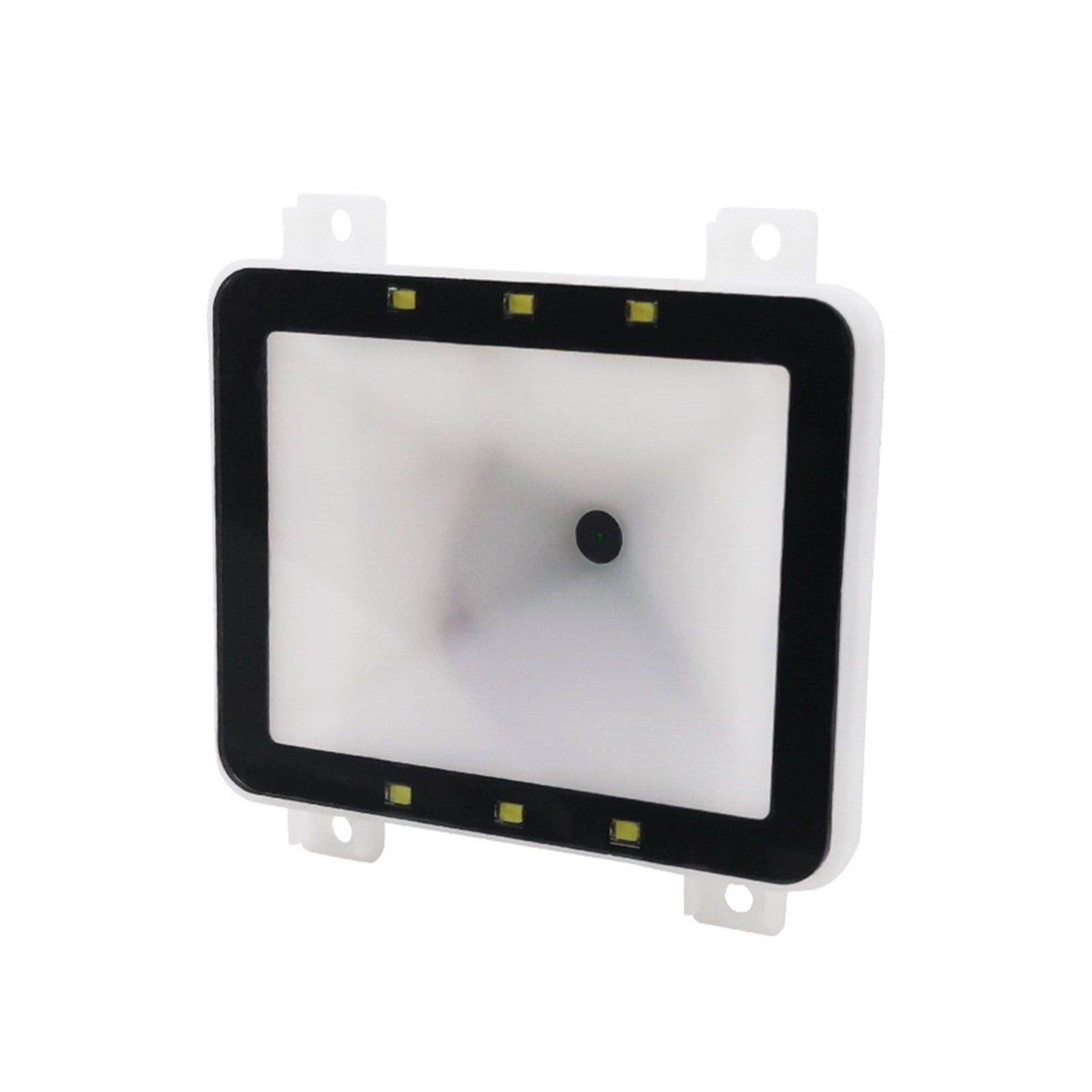

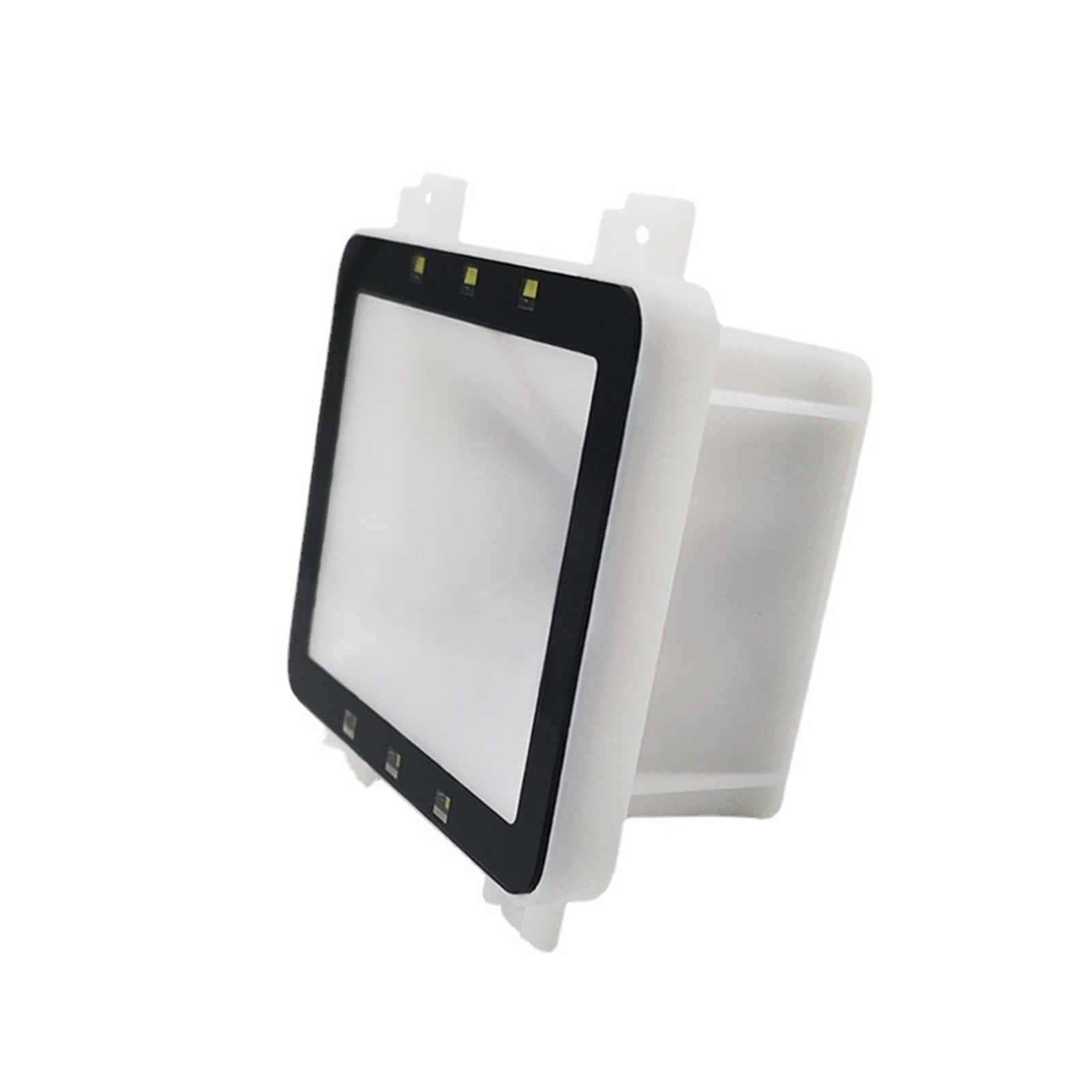

Embedded QR Code Scanning Module Vending Machine Visitor Gate Machine Barcode Scanner Quick Identification ,Easy to Operate

<p>Light source type 6 LED lighting</p><p>Sensor pixel 640*480PIX</p><p>Reading speed 200 times / second scan code prompt</p><p>LED indicator, buzzer support interface</p><p>USB keyboard, USB virtual serial port, RS232, TTL</p><p></p><p>Image sensor CMOS sensor chip reading accuracy</p><p>5mil scanning angle</p><p>Tilt ±60° Deflection ±60° Rotation 360°</p><p>Reading distance</p><p>Printing contrast at a distance of 0~30cm from the m-irror surface</p><p>Minimum 30% reflection difference</p><p>Dimensions</p><p>L*W*H65*66*34 (mm) Appearance material</p><p>All-encompassing protective case, no exposed circuit boards</p><p>Operating Voltage</p><p>DC 5V±5%</p><p>Operating temperature -20°C to 55°C relative humidity</p><p>5%-95%, no condensation</p><p>Data cable straight 1.5 meters</p><p>Trigger mode Manual/automatic protection class IP52 parameter storage temperature</p><p>-30°C to 70°C ambient light immunity 0-100,000 Lux.</p><p>Related Products:barcode scanner,scanner,barcode scanner wireless,wireless barcode scanner,bar code scanner,inventory scanner,wireless scanner,usb barcode scanner,bluetooth barcode scanner,barcode scanner bluetooth,upc scanner</p>

• Two-dimensional embedded scanning module, automatic ticket machine industrial assembly line inquiry machine | express pickup machine.
• Intelligent decoding technology supports the reading of various commonly used one-dimensional codes and two-dimensional codes, as well as the reading of barcodes on mobile phone screens, and the reading of reverse-color barcodes.
• The trigger scanning head supports the reading of various common one-dimensional codes and two-dimensional codes, wrinkled barcodes, reflective barcodes, and fuzzy barcodes.

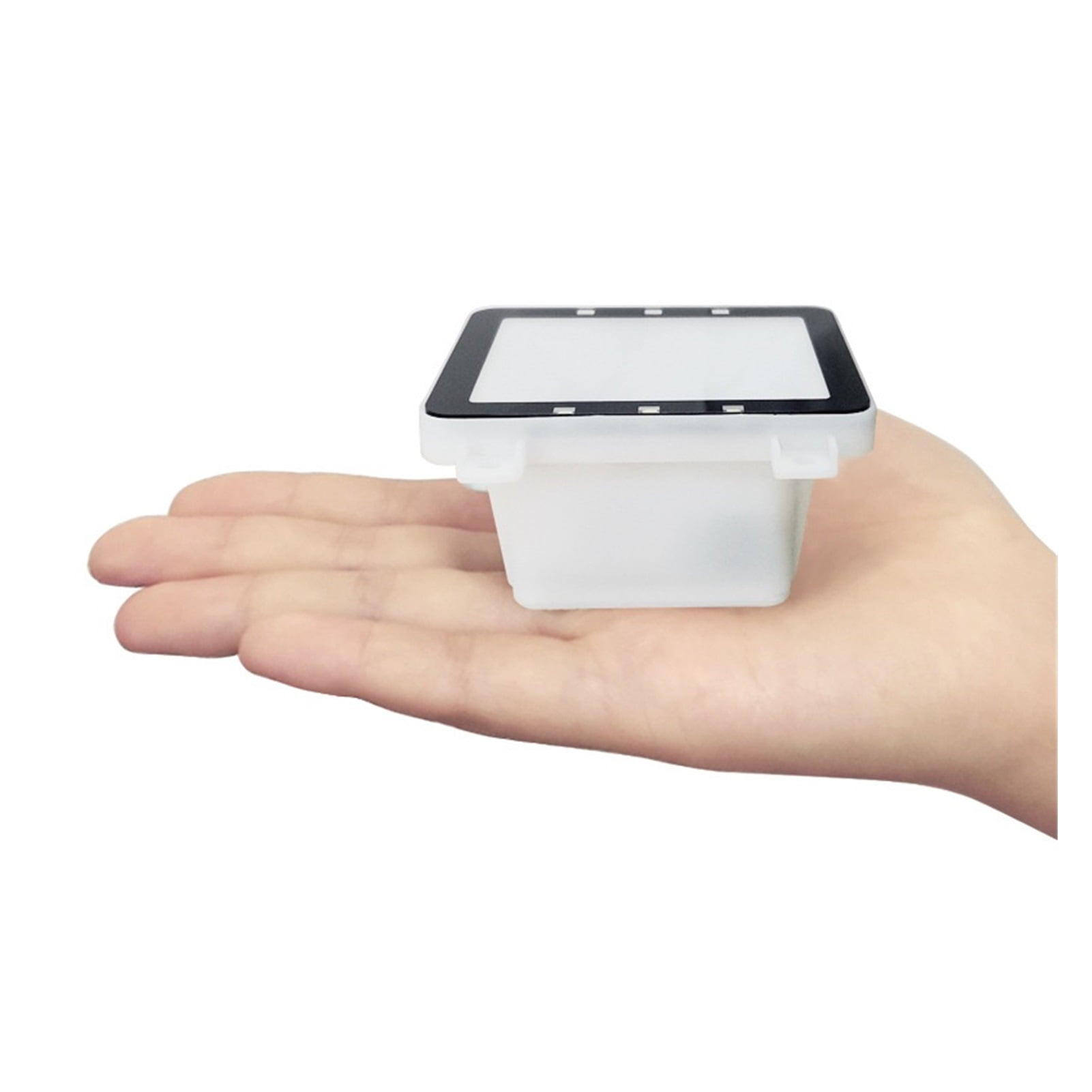

• The appearance is small and easy to embed, medical equipment, lockers, express boxes, movie ticket machines, etc.
• Compatible with major systems and more practical, rich interfaces support USB keyboard, USB virtual Serial port, TTL, RS232 and other interfaces.
